Radio
    Wave Propagation












As you use Citizens
  Band radio and become a more skilled radio operator you will probably promote
  your own interest into the mysterious world of radio frequency and radio
  waves. The following information is designed to provide you with a basic
  working knowledge of the Radio Frequency Spectrum and its components.










RADIO WAVES

  Radio waves surround you! Signals are transmitted and received by millions of
  stations. AM and FM radio stations, television, mobile business radios, fire
  and police radio systems, amateur radio stations, cordless and cellular
  telephones, pagers, nursery room monitors, garage door openers, and of course
  your personal Citizens Band Radio Station! Radio waves travel at the speed of
  light. The invisible radio wave consists of an electrostatic field and a
  magnetic field traveling at right angles in the direction of their
  transmission..










RADIO FREQUENCIES

  To help you to visualize the behavior of invisible radio waves imagine the
  effect on the surface of the water when you toss a small stone into the air
  and it lands in the water. Tiny ripples radiate in all directions. If you
  increase the size of the stone the size of the ripples will also increase and
  the distance between the peak of each ripple will increase also.

  If you could count the number of times the peak of each wave went past a
  specific point over one second, you would know the waves' frequency and
  wavelength. In radio waves, we measure frequency by the number of wave cycles
  per second. The more waves that pass a specific point in one second, the
  higher the frequency. And the distance that the wave travels in one cycle is
  the wavelength..











RADIO SPECTRUM

  The unit for measuring frequency is hertz (Hz). It is named after Heinrich
  Hertz, a German physicist who discovered electromagnetic waves. The
  frequencies that human can hear are audio frequencies and range from about 20
  Hz to about 18,000 Hz or 18 kHz. A dog can hear up to about 20 kHz or possibly
  even higher. The radio frequency spectrum starts at around 10 kHz and ranges
  up to 300,000 Megahertz (MHz). A frequency of 10 kHz means that the wave
  cycles 10,000 times per second. Similarly, a frequency of 300 million hertz
  (300 MHz) means that the wave cycles 300 million times per second.


In mobile radio
  communications we use the ranges of frequencies in the medium frequency (MF),
  high frequency (HF), and very high frequency (VHF) range..









CB RADIO

  Guess where the FCC assigned the short-range citizens band (CB) service. They
  allocated 23 channels - ultimately expanded to 40 channels - at 27 MHz. Is
  that below the magic 30 MHz dividing line? Sure is, and the planned
  short-range unlicensed CB radio service instantly turned into an undisciplined
  sky-wave free-for-all! Although intended to fulfill the need for personal
  short-range communications, regular high-frequency sky-wave skip signals
  blasted in from the ionosphere, causing short-range channel chaos.


During periods of reduced ionosphere-
  activity, the short-range capabilities of CB can be realized. But when the
  skip is active, a CB radio transmitter with only a few watts of output power
  can put strong signals into receivers thousands of miles away. This is
  commonly referred to as ‘DXing’. DXing has taken on a very active part in the
  CB world and continues to promote the use of Citizens Band use and operation.



Many well-established CB radio operators are
  strongly dedicated to the ‘art’ of DXing. Although skip is mainly
  unpredictable, DXers spend many long hours studying and charting the activity
  of skip signals. Some have even come very close to an established pattern that
  reveals some level of reliability. However, the pattern of skip is solely
  chance. Most DXers are satisfied to make distant contacts wherever and
  whenever the ionospheric skip permits.











MOBILE RADIO WAVE
  RANGE

  Different radio frequencies travel over the surface of the earth and into
  space in many different ways. Sometimes the bounce, sometimes they are
  refracted (bent) by the ionosphere. Some radio frequencies easily penetrate
  the thickness of a forest, yet other radio frequencies can be blocked by a
  single leaf.









GROUND WAVES


  Every radio transmission travels out from the antenna over two paths: the
  ground wave and the sky-wave. Ground waves are the real work horse for vehicle
  mobile communications up to 100 miles. Ground waves normally are vertically
  polarized signals that travel out in all directions from an omni-directional
  antenna and are usually strong enough to be detected up to 50 to 100 miles
  away.










Refraction




REFRACTION









In rural areas, land mobile radio systems
  may use frequencies in the VHF and UHF spectrum to maximize the potential of
  ground wave propagation. VHF signals propagate best in areas of rolling hills
  and over water. UHF signals become quite reflective, and are best propagated
  in the downtown area of cities with huge skyscrapers. When VHF and UHF signals
  require a range of more than 100 miles, repeater relay stations and satellites
  may have to be used to get these normally "line-of-sight" signals to go a lot
  further.











SKY WAVES

  The second component of a transmitted radio signal is the sky-wave. In VHF and
  UHF mobile radio bands, sky-waves normally travel out into space and keep
  right on going. UHF and microwave sky-waves have traveled millions of miles to
  earth from space probes sent out into deep space.


Sky-waves on medium frequencies and high
  frequencies take a remarkable skip off of the ionosphere that circles our
  planet at altitudes of 50 to 250 miles. 'When a medium or high frequency radio

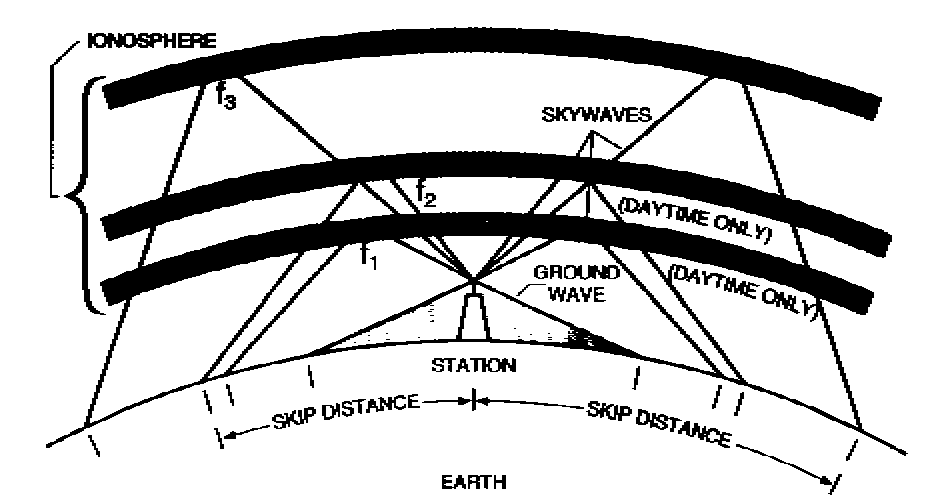

  wave enters the ionosphere, the radio wave is refracted back to earth (see
  drawing). Just as a prism refracts sunlight into different color bands over a
  range from blue too red, radio waves refracted by the ionosphere may skip back
  to earth over a range of 200 to 3000 miles away from the transmitter. If the
  hop back to earth is strong enough and lands in the very conductive ocean,
  that medium frequency or high frequency wave takes a double hop - sometimes a
  triple hop - and literally skips around the world.


Ham radio operators regularly take advantage
  of this sky-wave excitement on their specific frequencies in the medium and
  high frequency spectrum. Same thing with ocean voyaging mariners - they chose
  their bands carefully to bounce their signal back to shore to stay in touch
  with their mobile marine station hundreds and thousands of miles away. On a
  hot summer afternoon, 30 MHz is the usual dividing line between sky-wave
  communications that come back to earth and sky-waves that simply keep on going
  into outer space. For frequencies below 30 MHz, the sky waves bounce back to
  earth. Above 30 MHz, skip usually is not a problem..
















HOW IMPORTANT IS
  POWER OUTPUT?

  The output power of a mobile transmitter, which might be as low as 1 watt or
  as high as 1000 watts, has very little to do with the maximum distance that
  the signal may travel. Although signal strength varies inversely with the
  distance, a major increase in power output will have little or no effect in
  establishing communications to a distant point that couldn't hear the ground
  wave or sky-wave at the original power setting.


Out on the oceans, mariners use 25-watt
  radios for short-range communications on the VHF band. Up to about 100 miles,
  the sea water has little effect on VHF waves, but on the worldwide lower
  frequencies, the high conductivity of sea water causes the signal strength of
  the ground wave to vary inversely with the distance. When operating on these
  frequencies, mariners require more power and rely almost entirely on sky-wave
  propagation to get their signals received hundreds and thousands of miles
  away.
